High quantity Cold Rolled Galvanized Coil 0.33mm*1200mm GI/GI DX51 Galvanized Steel Coil
What is Galvanized Steel Coil:
Hot Dipped Galvanized Steel Coil (GI steel sheet) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface.It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristic. Usually hot dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.
Galvanized steel coil is defined as a carbon steel sheet coated with zinc on both sides. A zinc coating is one of the most effective and economical methods of protecting bare steel from a corroding environment. The zinc not only serves as a barrier between the steel and the environment it will sacrifice itself to protect the underlying steel sheet.
Galvanization or galvanizing is the process of applying a protective zinc coating to steel or iron, to prevent rusting. The size of crystallites (grains) in galvanized coatings is a visible and aesthetic feature, known as "spangle".
With the cold rolled steel of different strengths and thicknesses as substrate. it is produced by applying the zinc coat on both faces by a hot dip process.

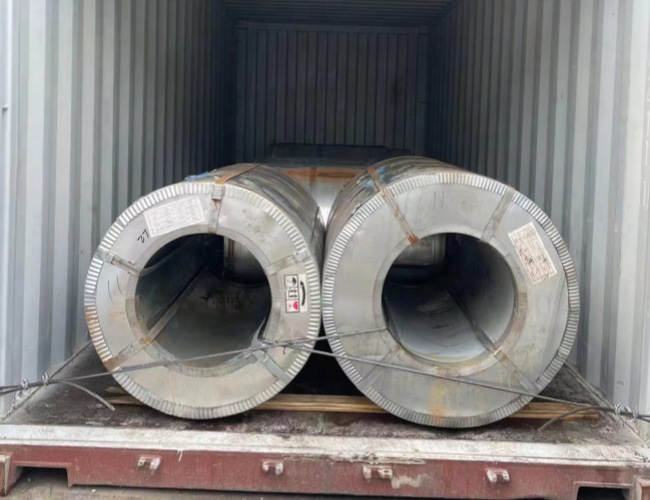

Galvanized Steel Coil Packing And Shipping:
Mill standard export seaworthy package with inner sleeve and with 4 eye bands 3 circumferential bands in steel,galvanized metal fluted rings on inner and outer edges,galvanized metal & water proof paper wall protection disk around circumferences.
Galvanized Steel Coil Product Parameter :
| Grade | DX51D DX52D DX53D DX54D DX55D Galvanized Steel Sheet,galvanised steel coil |
| Type | Plate/sheet/coil |
| Length | 50-12000mm,as required by you |
| Width | 600mm - 1500mm,as required by you |
| Thickness | 0.1-2mm,as required by you |
| MOQ | 1 Ton |
| Payment | 30%TT for deposit, 70% balance before shipment or LC at sight |
| Finish | Oiled/non-oiled/galvanized/bright/black/annealed,etc |
Galvanized Steel Coil process:
1.Hot and cold rolled steel plate through alkali washing degreasing, and washed, dried and then into the horizontal (vertical) heating furnace heating radiation tube for annealing, furnace through a certain amount of hydrogen to make the furnace early layer reduction atmosphere.
2.The steel strip heated to a certain temperature is immersed in zinc solution for hot dip galvanizing under certain conditions.
3.Zinc flower size has liquid zinc composition to control at the same time, the method of forced cooling to control, small zinc flower products in the zinc flower began to spread before, with small zinc flower equipment for rapid cooling to prevent zinc liquid to continue to spread, the formation of small zinc flower.
4.After the hot dip galvanized post cooling through the surface finishing, and finally according to the use, respectively, surface passivation treatment or direct production into color coated coil plate.
